Paper Joggers & Paper Handling

The UJ-600AS Air Jogger is the perfect addition to any print shop. Jog uneven paper stacks with rapid speed and reduce static between the sheets before loading them into a post press device. Jogging helps align the edges of the sheets prior to finishing and prevent errors such as miss or double feeding.

The UJ-600AS is portable, compact in size, and can be placed near a digital press or finishing equipment. Load sheets up to 13” x 19” in size and select from one of the settings such as air only, jogger only, reset timer operation, and time interval difference which offers continuous jogging for a preset duration after the air has stopped. The device features a hands-free operation with an automatic start and stop function. The foot pedal can also be used to start and stop operation.

The UJ-600AS features a large air blower to efficiently reduce static along with adjustable air strength and volume. It’s a must-have for any digital printer!

The Duplo FB-706 Form Burster bursts, trims, and slits continuous forms at a variable speed of up to 410 feet per minute. Ideal for any office environment, the electronic length settings and fixed burst rollers make the FB-706 compact and quiet. The user-friendly control panel allows a quick and easy form length set up. Built-in light indicators on both margin slitters show where sheets will be slit. Form job memory stores up to 120 jobs, reducing setup time for commonly used jobs.

The Duplo V-590 Sheet Cutter is uniquely designed to handle cut sheet generated from a digital printer. The V-590 automatically feeds and cuts, slits or perforates sheet forms at up to 2,640 sheets per hour. With increased +/- cutting accuracy, faster processing speed and other top notch enhancements, the quality-engineered feeding and cutting system delivers precise and razor sharp edges on every finished piece - making it perfect for checks, coupons, notices, tickets and more.

The Duplo V-417 Cut Sheet Burster automatically separates pre-perforated forms and stacks them in sequential order. With speeds of up to 140 sheets per minute, it's perfect for bursting multiple forms printed on the same sheet. Eliminate cut sheet bursting by hand and add efficiency to your operation!

The UP-240 Paper Bander wraps a strip of craft paper or film around the bundle, providing you with the same security but at a lower cost than a box or bag. The UP-240 can be placed near your Duplo finishing machine for an efficient finishing and packaging operation. As soon as your pieces are finished and stacked, collect and place them directly on to the bander. The sensor will detect the bundle and automatically wrap a band around it. It’s packaging made easy!

The FD 574 Cut-Sheet Cutter is uniquely designed to process forms generated from a digital printer, up to 44 forms per minute. It automatically feeds the forms and cuts, slits*, or perforates* in the desired position, using transport rollers for accuracy and controls for fine-tuning.

With a speed of up to 2,640 sheets per hour, and cutting accuracy of +/- 0.5, it delivers precise and razor sharp edges on every finished piece, from checks and coupons, to tickets, membership cards and more. Pre-programmed for six popular paper sizes, it also has up to 100 programmable jobs. Options include a slitter, perforator, and belt conveyor stacker.

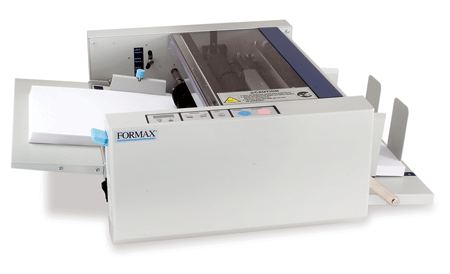

The FD 4170 Cut-Sheet Burster is the ideal finishing solution when multiple forms are printed on one page. Direct from a laser printer to the FD 4170, pre-perforated forms are automatically burst at perforation and stacked sequentially at speeds of up to 140 sheets per minute. No more cut sheet bursting by hand! Features include 5-level speed control, LCD counter, pro-programmed settings for 11", 14" and 17" paper, adjustable side guides, and last job memory.

The FD 402P1 Single-Bin Paper Jogger provides quick and easy alignment for a wide variety of paper sizes up to 11" x 17". Jogging forms helps to separate them and reduce static electricity for accurate feeding through pressure sealers, folders, inserters and other paper handling equipment.

Its solid state switch controls on/off and vibration speeds, up to 4,000 per minute. Electromagnetic design allows for continuous operation, while the slotted clean-outs allow paper dust, staples, paper clips and other debris to exit the jogging bin. The FD402P1 also features a tilted rack and a center divider to properly jog small paper stacks.

The FD 402P3 Three-Bin Paper Jogger is ideal for higher volume environments and provides quick and easy alignment for a variety of paper sizes up to 8.5" x 14". Jogging forms helps to separate them and reduce static electricity for accurate feeding through pressure sealers, folders, inserters and other paper handling equipment.

Its solid state switch controls on/off and vibration speeds, up to 4,000 per minute. Electromagnetic design allows for continuous operation, while the slotted clean-outs allow paper dust, staples, paper clips and other debris to exit the jogging bin.

The FD 404A1 High-Capacity Air Jogger features improved ergonomics and a contemporary color scheme, and is ideal for print shops and production houses. This upright air jogger aligns and dries printed sheets as a single process, while removing static electricity. Variable vibration speed and air pressure controls combine to reduce jogging time, allowing press sheets and digital printouts to be air-dried immediately.

Its V-shaped jog bin allows for jogging a criss-cross stacked pile of papers, while the vertical to horizontal tilt feature helps keeps large paper stacks from bending. With a capacity of up to 940 sheets, standard or foot pedal operation, and all-metal construction, the FD 404A1 is an ideal piece of equipment for any print shop.

The FD 402TA1 Tabletop Air Jogger is an ideal solution for print shops and production houses with limited space. This compact, powerful model aligns and dries sheets in a single process while reducing static electricity. Variable vibration speed and air pressure controls combine to reduce jogging time, allowing press sheets and digital printouts to be air-dried immediately.

Its V-shaped jog bin allows for jogging a criss-cross stacked pile of papers, while the vertical to horizontal tilt feature helps keeps large paper stacks from bending. It has three operating modes, and variable air pressure and speed control to process up to 940 sheets at a time in sizes up to 12” x 18”.

This low-volume burster offers industrial quality at an economical price. The FD 550 processes bursting jobs at speeds of 0-200 feet per minute. Standard features include tractor feed, slitters, safety interlocks, a conveyor unit and a cabinet. A power drop-stacker can be added to enhance productivity.

This low-volume unit is capable of operating 5 hours a day, 5 days a week. Many of the standard features offered in the higher end models are available as options to meet any need or application.

Two high-volume industrial bursters are available to process large bursting jobs at speeds up to 500 feet per minute while slitting, separating and stacking the forms. Standard features include slitters, tractor feed, safety interlocks, stand and a conveyor unit. A power drop-stacker can be added to enhance productivity.

The FD 676 is the standard model, while the FD 680 adds an imprinter. Each high-volume unit is capable of continuous operation, 7 days a week.

Formax FD 4040 and FD 4060 Drop-Stacking Conveyors are commonly run in-line with various brands of inkjet addressing systems. Utilizing internal vacuum fans at the infeed, they offer high-speed transport up to 350 feet/minute. These dual high-suction fans are located under the perforated belt, and pull media down onto the conveyor.

The FD 4040 and FD 4060 each feature a patent-pending reversible control panel module which can be rotated 180 degrees for left-to-right or right-to-left transport, offering greater flexibility in workflow and equipment configuration. IEC receptacles are integrated into the control panel providing safe, convenient power for an optional infrared dryer.

Each model has adjustable height legs up to 35" from the floor, as well as adjustable drop stack height from 5" - 11", and each is proudly made in the USA.

The V-Stack36 vertical stacker is designed to work with a variety of Formax pressure sealers and tabletop folders. Unlike a traditional outfeed conveyor, it stacks forms vertically, providing a neat stack which is easier to unload for further processing.

With photo-eye activation, the V-Stack36 neatly stacks up to 22 inches of folded documents. The infeed features a six-ball-roller deck and two guide wheels to ensure forms enter the stacker smoothly, and an LED lamp which alerts operators when the stacker is near full capacity. Its vertical paper stop adjusts to accommodate document sizes and fold types up to 7” high by 12" wide.

An interlock is available for FD 38X folders and FD 2054, FD 2096 and 2200 Series pressure sealers, which automatically stops the stacker and the source machine when the stacker is at full capacity.

A height-adjustable stand with locking casters is available to align with a variety of inputs. The stand is optional for use with tabletop folders and pressure sealers, and required for use with production pressure sealers.

The BAUM 20 RCS Receding Delivery Stacker is adaptable to many applications for post press, mailing, material handling, packaging and more. The adjustable infeed table design allows multiple machines to adapt to this affordable receding stacking solution

This unique and versatile feeder is designed to integrate with many applications requiring an independent pile feeder for longer runs, including but not limited to: UV Coaters, Laminators, Creasing Machines, Scoring and Perforating Machines, Inkjet Bases, Die Cutters and more!

The BAUM 20 IPF incorporates all of the well proven and reliable features of the BAUM 20 Series pile feed folders and adds more features to meet the needs of multiple applications

The Baum 20 ICF is an Independent continuous feeder that provides the capability for non-stop continuous feeding of sheets onto another. The Baum 20 ICF also includes a precision register table. This machine is installed in a fixed position due to the larger size of the machine.

The NEW BAUM 20 Rollaway Delivery Stacker brings increased capacity on a rugged mobile base.  It has 33% more belt length compared to the previous hang-on delivery stacker on the previous BAUM 20 series machines.

BAUM provides more than standard folding solutions by utilizing select folding machine modules for other applications. MIRT is the short version name for Mobile Independent Right-Hand Transfer conveyor.  These unique units have several applications:

• To transport stitched booklets from stitchers or booklet-makers where a fold is needed parallel to the spine of the booklet to make the flat size smaller for mailings.  A BAUM K20 Knife folder is used to make the parallel fold after the MIRT transfers the booklet.

• To sequence sheets back into order from multiple up east/west, north/south printing

• Can be used as in-line registration table with various inkjet and remoistenable gluing applications

• Used in place of Bump-Turn table
